Custom 304 316 Stainless Steel Balance Weave Wire Mesh Spiral Freezer Conveyor Belt for Food Processing

Custom 304 316 Stainless Steel Balance Weave Wire Mesh Spiral Freezer Conveyor Belt for Food Processing

Merknaam: COMESH
Modelnummer: CM-CB001
Moq: 2 m
Prijs: USD35-55 per meter
Betalingsvoorwaarden: D/A, D/P, T/T, Western Union
Toeleveringsvermogen: 500m per week
Gedetailleerde informatie
Plaats van herkomst:
China
Certificering:
FDA
Materiaal:
roestvrij staal 304
Breedte:
1220 mm
Lengte:
6 m
Draaddiameter:
1,7 mm
Stangdiameter:
8 mm
Spiraalveld:
7 mm
Verpakking Details:
Pp-zak binnen, en toen houten geval buiten
Productbeschrijving
Custom 304 316 Stainless Steel Balance Weave Wire Mesh Spiral Freezer Metal Food Conveyor Belt
This custom stainless steel balance weave wire mesh spiral freezer metal food conveyor belt is specifically engineered for spiral or round conveyor systems as well as straight-running conveyors. With side-flexing capability, the belt can navigate around obstacles in complex conveyor layouts. The flexible rod belt is widely used in food processing industries for cooling, cooking, and freezing applications.
Specification Details
Material Stainless steel 304, or customized
Width 1220 mm, or customized
Length 6 m per roll, or customized
Wire Diameter 1.7 mm, or customized
Rod Diameter 8 mm, or customized
Spiral Pitch 8 mm, or customized
Chain Pitch 25.4 mm, or customized
Available Materials
  • AISI 314 (1150°C)
  • SUS 310S (1090°C)
  • SUS 330 (1150°C)
  • SUS 304 (400°C)
  • SUS 316 (1000°C)
  • Super alloy Cr20Ni80 (1250°C) electrical furnace wire
  • SUS 321 (750°C)
  • SUS 410 (700°C)
  • SUS 430 (700°C)
  • Various metal materials as per your requirements
Applications
  • Food processing (especially fried foods industries)
  • Packaging
  • Material handling
  • Automotive assembly lines
Key Features
Material
High-quality stainless steel construction provides excellent resistance to corrosion and high temperatures
Design
Spiral wire mesh offers flexibility and strength for transporting various products
Chain Driven
Smooth and reliable movement along the conveyor path
Customization
Available in various sizes, wire diameters, and mesh configurations
Packing & Delivery
Packing
PP bag inside, and then wooden case outside
Delivery
Can be shipped by sea or air, express services including DHL, FEDEX, TNT, SF, UPS, etc.
Product Images

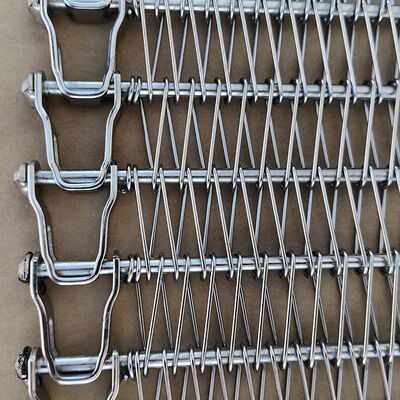

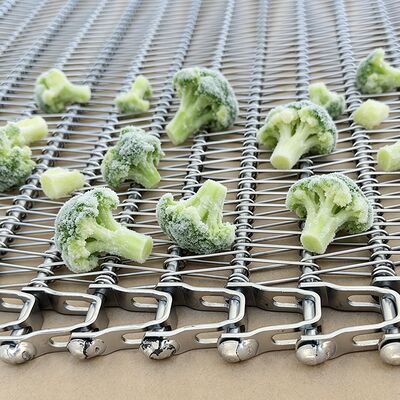

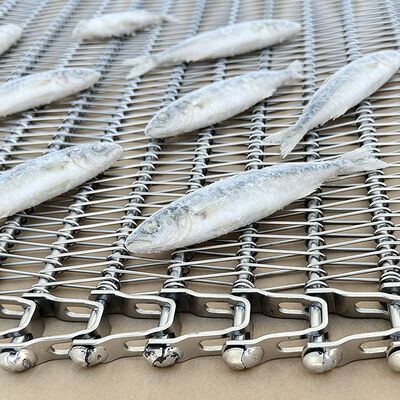

Custom 304 316 Stainless Steel Balance Weave Wire Mesh Spiral Freezer Conveyor Belt for Food Processing 0 Custom 304 316 Stainless Steel Balance Weave Wire Mesh Spiral Freezer Conveyor Belt for Food Processing 1
