Customized Plain Woven Polyester Mesh Conveyor Belt for Paper Making Sludge Dewatering Dryer

Customized Plain Woven Polyester Mesh Conveyor Belt for Paper Making Sludge Dewatering Dryer

Merknaam:	COMESH
Modelnummer:	CAR-34
Moq:	1 vierkante meter
Betalingsvoorwaarden:	L/C, T/T, Western Union, Paypal, Handelsverzekering
Toeleveringsvermogen:	2000 vierkante Meters per Kwart

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

Hebei, China

Certificering:

FDA

Materiaal:

Batterij

Weeftype:

Gewoon weefsel

Kleur:

Wit, blauw

Naam:

Aangepaste effen geweven polyester gaastransportband voor papierfabricage van slibontwateringsdroger

Levering:

binnen 10 dagen

Lengte:

Het overeenstemmen doet uw verzoek

Maat:

Paste de grootte aan

Sollicitatie:

Papierindustrie/luiermachine

Gezamenlijk:

Pinring, spiraalvormige stalen clip, eindeloze naad

Verpakking Details:

Plastic Zak Inaide en Triplexgeval buiten of volgens Uw Behoeften.

Markeren:

woven polyester mesh conveyor belt

polyester mesh belt for sludge dewatering

customized conveyor belt for paper making

Productbeschrijving

Customized Plain Woven Polyester Mesh Conveyor Belt for Paper Making Sludge Dewatering Dryer

The polyester linear screen cloth mesh belts cloth is made out by high viscosity Polyester monofilament yarn, and weaving in 1:1 plain weave to get uniform and defined mesh opening, which makes the polyester mesh belts in high separation efficiency and optimum filtration effects. Furthermore, our linear screen filter belts are all being thermal setting to get high lateral stability and optimum running properties. Our Screen’s linear screen polyester mesh belts have a wide range of aperture size to meet the various application respectively, blue and white color both available.

Advantage:

1) Excellent chemical, thermal and high permeability for easy cleaning
2) Food approval: food grade
3) Working temperature: +150°C to -75°C in dry conditions. 70°C+ in wet conditions
4) Precise aperture to achieve excellent filtration results and efficiency
5) Smooth running properties
6) Mesh opening 0.4mm-5.0mm available
7) Excellent chemical stability, Synthetic Fiber Chemical Properties Table
8) Excellent durability
9) Max. Width 6.0 M with hot melt edges
10) Clipper seam, pin rings, spiral rings, endless connection type are all available.
11) Various and plenty stock for fast delivery to save your time

Specification:

Weaving Type	Model	Thread Diameter		Density(No.s/cm)		Strength ((N/cm)	Air Permeability (m3/m2h)
		(mm)		Density(No.s/cm)
		Warp	Weft	Warp	Weft
2-shed plain weaving	05802	0.75	0.8	4.7-5	4.8-5	940	20000
	05102	1	1	4.7-5.2	4.3-5	1600	15000
	06702	0.7	0.7	8	7	1600	11000
	07102	0.7	1	6.6-7	4.3-4.6	1100	15000
	08552	0.55	0.55	7.5-8	8.5-9	850	850-6500
	09452	0.45	0.45	10	8.6	1600	16000
	09502	0.5	0.5	8.5-9	10-10.5	750	10000
	12502	0.5	0.5	13.5	8.5	1800	6500
3shed plain weaving	8603	0.5	0.6	10	9	1600	14000
	8903	0.9	0.9	7.8-8	5-5.5	2100	7500-8500
	7803	0.7	0.8	8	8	1600	10000
	20353	0.3	0.35	22	14.5	1200	13000

We are a professional manufacturer of polyester mesh belts, producing a wide range of specialized polyester mesh belts, including sludge dewatering mesh belts, paper forming mesh belts, paper drying mesh belts, tea withering mesh belts, belt filter press mesh belts, vacuum conveyor mesh belts, power plant desulfurization filter cloths, vacuum drying mesh belts, composite machine mesh belts, non-woven fabric mesh curtains, food drying conveyor mesh belts, and more. These products are widely used in MDF production, power plant desulfurization, tailings dry discharge, sewage treatment, juice pressing, and in industries such as papermaking, food, pharmaceuticals, and tea.

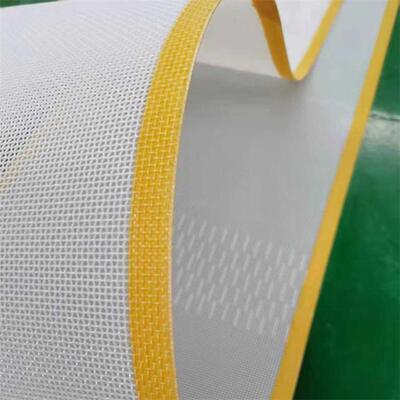

Customized Plain Woven Polyester Mesh Conveyor Belt for Paper Making Sludge Dewatering Dryer 2

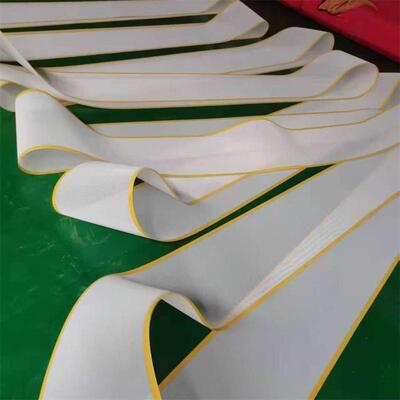

Customized Plain Woven Polyester Mesh Conveyor Belt for Paper Making Sludge Dewatering Dryer 3
