304 Stainless Steel Balance Weave Spiral Wire Mesh Chain Driven Freezer Conveyor Belt

304 Stainless Steel Balance Weave Spiral Wire Mesh Chain Driven Freezer Conveyor Belt

Merknaam:	COMESH
Modelnummer:	CM-CB2511201
Moq:	2 m
Prijs:	USD35-55 per meter
Betalingsvoorwaarden:	D/A, D/P, T/T, Western Union,
Toeleveringsvermogen:	500m per week

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

China

Certificering:

FDA

Materiaal:

Roestvrij staal 304

Breedte:

800 mm, of aangepast

Lengte:

6 m per rol, of op maat gemaakt

Draaddiameter:

1.5 mm, of aangepast

Stangdiameter:

6 mm, of op maat

Spiraalveld:

8 mm, of aangepast

Kettingsteek:

38,1 mm, of aangepast

Verpakking Details:

Pp-zak binnen, en toen houten geval buiten

Markeren:

304 stainless steel conveyor belt

chain driven freezer conveyor belt

balance weave spiral wire mesh

Productbeschrijving

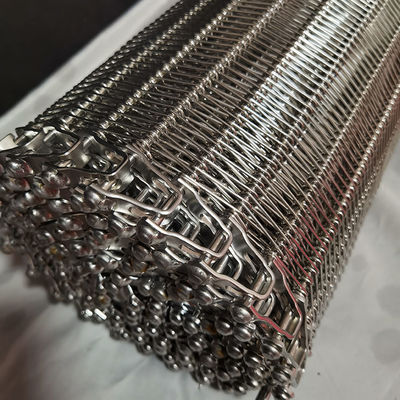

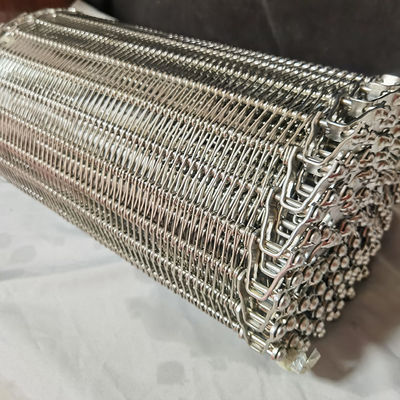

304 Stainless Steel Balance Weave Spiral Wire Mesh Chain Driven Freezer Conveyor Belt

This kind of Balance Weave Spiral Wire Mesh Chain Driven Freezer Conveyor Belt is especially designed for spiral or round conveyor as well as straight-running conveyor. With the ability to side flex, the belt can also be used for conveyors arranged to go around obstacles.The flexible rod belt is popular in the food industries, including cooling, cooking or freezing products.

Product Specifications

Material	Stainless steel 304, or customized
Width	800 mm, or customized
Length	6 m per roll, or customized
Wire Diameter	1.5 mm, or customized
Rod diameter	6 mm, or customized
Spiral pitch	8 mm, or customized
Chain pitch	38.1 mm, or customized

Available Materials

1) AISI 314 (1150°C)

2) SUS 310S (1090°C)

3) SUS 330 (1150°C)

4) SUS 304 (400°C)

5) SUS 316 (1000°C)

6) Super alloy Cr20Ni80 (1250°C) electrical furnace wire

7) SUS 321 (750°C)

8) SUS 410 (700°C)

9) SUS 430 (700°C)

10) Various metal materials as per your requirements

Key Features

Material: High-quality stainless steel construction provides excellent resistance to corrosion and high temperatures
Design: Spiral wire mesh offers flexibility and strength for transporting various products
Chain Driven: Smooth and reliable movement along the conveyor path
Customization: Available in various sizes, wire diameters, and mesh configurations

Applications
