Heavy Duty Stainless Steel 316 Honeycomb Mesh Conveyor Belt with Baffle

Heavy Duty Stainless Steel 316 Honeycomb Mesh Conveyor Belt with Baffle

Merknaam: PFM
Modelnummer: PFM-CB356
Moq: 1meter
Prijs: Onderhandelbaar
Betalingsvoorwaarden: L/C,T/T,Western Union,Paypal,handelsgarantie
Toeleveringsvermogen: 300 meter per maand
Gedetailleerde informatie
Plaats van herkomst:
Hebei, China
Certificering:
SGS
Materiaal:
Roestvrij staal, koolstofstaal
Platte draadpijl:
25,4 mm
Staafveld:
25,4 mm
Stangdiameter:
5,0 mm
Vlakke draadgrootte:
1.2 mm*14.1 mm
Steekproef:
Beschikbaar
Verpakking Details:
Plastic zak binnen en plywood koffer buiten of volgens uw behoefte.
Markeren:

stainless steel 316 conveyor belt

,

honeycomb mesh conveyor belt

,

heavy duty wire mesh belt

Productbeschrijving

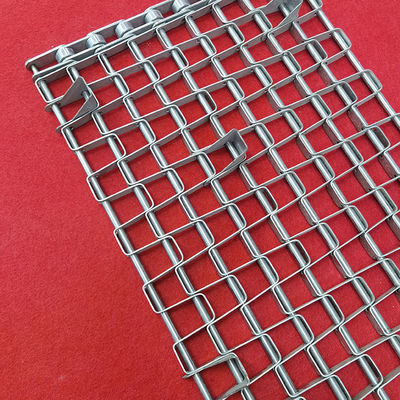

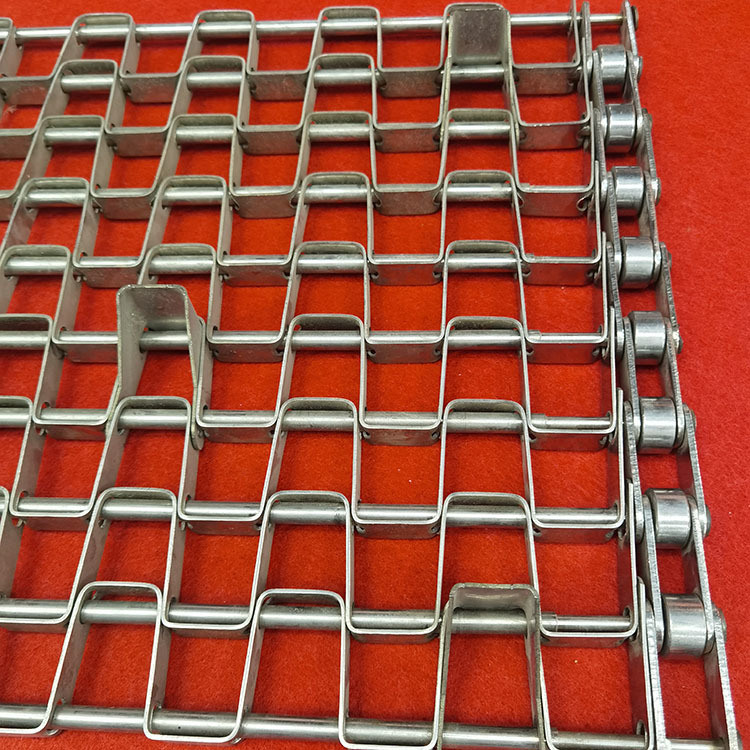

Heavy Duty Stainless Steel 316 Honeycomb Mesh Conveyor Belt with Baffle
Description
Flat wire conveyor belt is also called honeycomb conveyor belt or flat plate conveyor belt. The flat plates are arranged in the form of lattice and joined with straight rods. Customers can request chains, side plates, or both attached to the belt's sides. The side plates prevent goods from falling, while chains drive the belt.
Specification
Material stainless steel, carbon steel
Width customized
Length customized
Flat wire pitch 12.7, 14, 15, 16, 18, 24, 25.4 mm
Rod pitch 13.7, 19.05, 25.4, 27 mm
Rod diameter 3.0, 4.0, 5.0 mm
Flat wire size 1.2x9.5, 1.2x14.1, 1.5x12.7, 1.5x14.1 mm
Features
  • Positive sprocket drive ensures stable running
  • Larger open area provides high air permeability
  • Easy to wash and maintain
  • Smooth surface carries unstable products securely
  • Suitable for curved conveyor applications (CFW)
Applications
  1. Conveyor machines
  2. Frying facilities
  3. Annealing furnaces
  4. Refrigeration facilities
  5. Cleaning machines
  6. Drying ovens
  7. Food transport
  8. Baking
  9. Cooling and freezing
  10. Steaming and drying
